PY Automatic Full-stripping Roll Die Cutting Machine can complete full steps from roll to finished product including die cutting, creasing, stripping and collection. It is an ideal equipment for producing paper box, cover, express bag, cards, etc. for post-press packaging.
|
Type |
PY-950S |
PY-1100S |
PY-1200S |
|
Precision: |
± 0.10mm |
± 0.10mm |
± 0.10mm |
|
Capacity |
90-150times/min |
90-150times/min |
90-150times/min |
|
Max cutting size: |
950 x540mm |
1100 x650mm |
1200 x640mm |
|
Max feeding Width: |
950mm |
1100mm |
1200mm |
|
uitable Material: |
100-600g/m2 Pe coated paper, cardboard paper, Kraft paper etc |
120-600g/m2 Pe coated paper, cardboard paper, Kraft paper etc |
100-600g/m2 Pe coated paper, cardboard paper, Kraft paper etc |
|
Maximum Pressure: |
350T |
350T |
350T |
|
Total Power: |
30KW |
30KW |
32KW |
|
Weight: |
13T |
15T |
15T |
|
Overall Dimension: |
10000 x 4000 x 2000 mm |
10200 x 4150 x 2000 mm |
10200 x 4150 x 2000 mm |
|
Working Air Source: |
Air pressure 0.5-0.7Mpa |
Air pressure 0.5-0.7Mpa |
Air pressure 0.5-0.7Mpa |
The normal working speed is 90-150times per minute. It has the ability to die-cutting,creasing,sheeting,stripping and collecting.

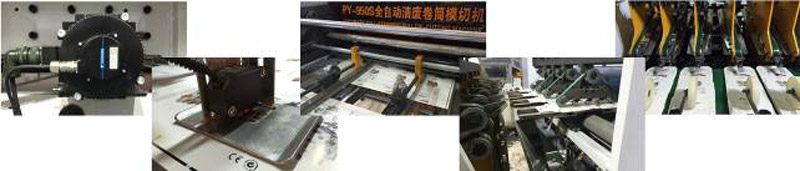

2.Imported servo motor driving,imported color sensor recognizition,new sheeting design,full-stripping by pinheads,automatic stack collecting.
