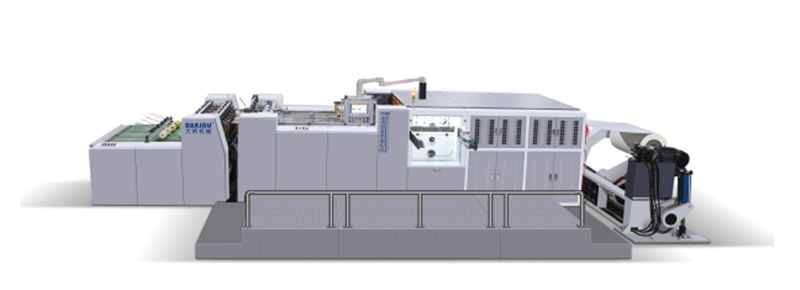

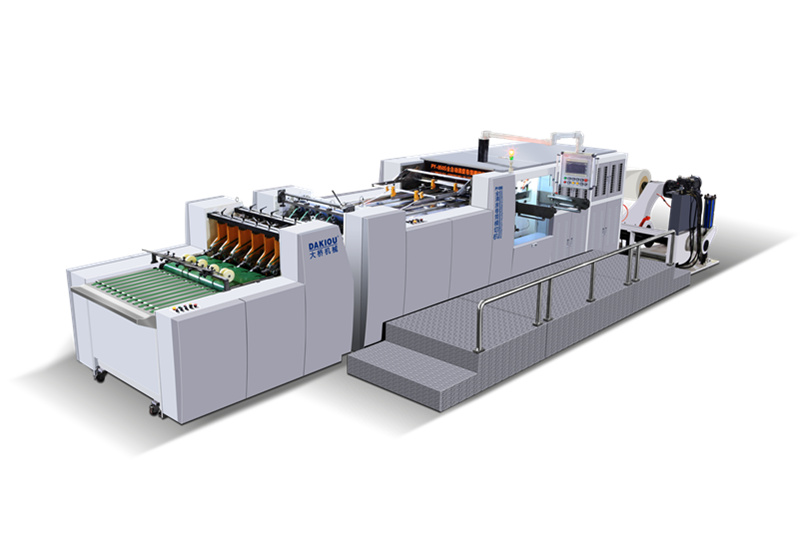

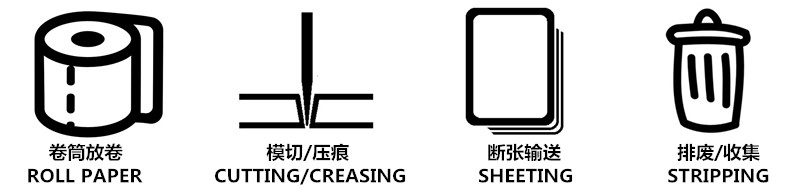

PY Automatic Full-stripping Roll Die Cutting Machine can complete full steps from roll to finished product including die cutting, creasing, stripping and collection. It is an ideal equipment for producing paper cups fan, paper boxes, cards etc of post-press packaging.
Easy and safety operation, High efficiency
Technical Specification
|
Type |
PY-950S |
PY-1100S |
PY-1200S |
|
Precision: |
± 0.10mm |
± 0.10mm |
± 0.10mm |
|
Capacity |
90-150times/min |
90-150times/min |
90-150times/min |
|
Max cutting size: |
950 x540mm Or 950 x640mm |
1100 x650mm |
1200 x650mm |
|
Max feeding Width: |
950mm |
1100mm |
1200mm |
|
uitable Material: |
120-600g/m2 Pe coated paper, cardboard paper, Kraft paper etc |
120-600g/m2 Pe coated paper, cardboard paper, Kraft paper etc |
120-600g/m2 Pe coated paper, cardboard paper, Kraft paper etc |
|
Maximum Pressure: |
350T |
350T |
350T |
|
Total Power: |
30KW |
30KW |
32KW |
|
Weight: |
13T |
15T |
15T |
|
Overall Dimension: |
10000 x 4000 x 2000 mm |
10200 x 4150 x 2000 mm |
10200 x 4150 x 2000 mm |
|
Working Air Source: |
Air pressure 0.5-0.7Mpa |
Air pressure 0.5-0.7Mpa |
Air pressure 0.5-0.7Mpa |
Main Feature:
1.The normal working，speed is 90-120times per minute. It has the ability to die-cutting,creasing,sheeting,stripping and collecting.

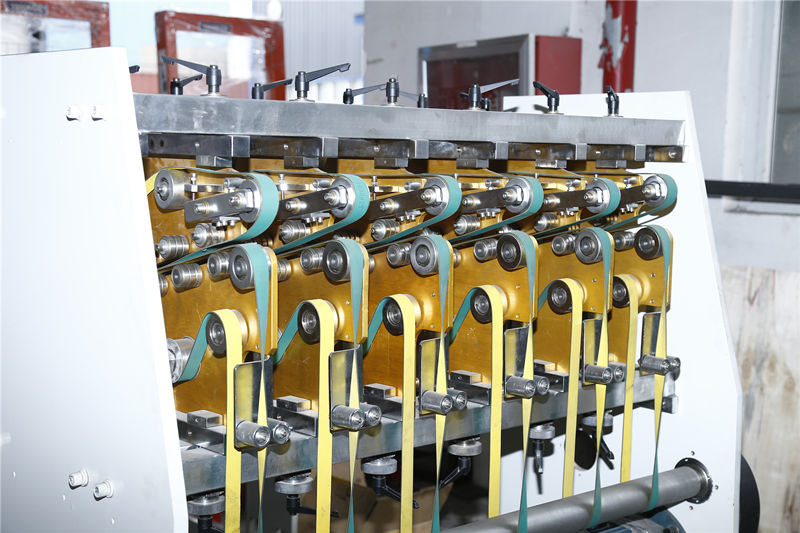

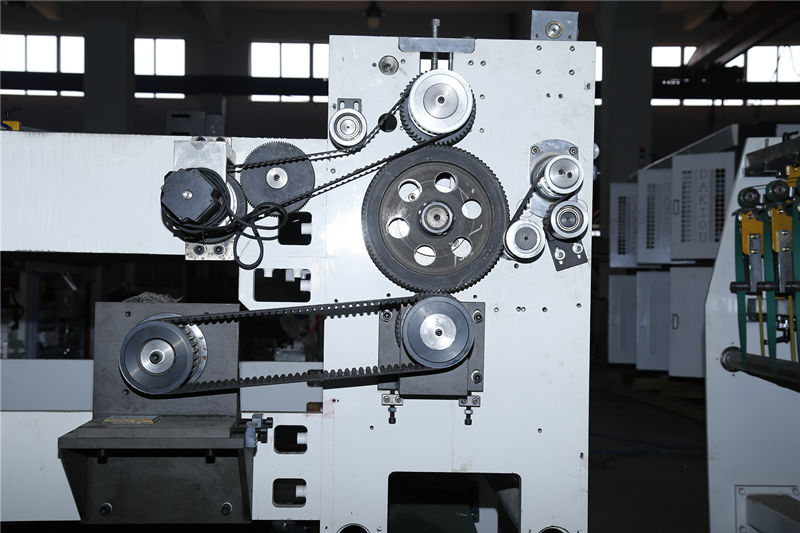

2.Imported servo motor driving,imported color sensor recognizition,new sheeting design(the old type use the rod flapping to sheeting),full-stripping by pinheads,automatic stack collecting.
Components Brand:
|
Motor |
Main motor |
SIEMENS |
|
Servo motor |
YASKAWA(JAPAN) |
|
|
Stepper motor |
YASKAWA(JAPAN) |
|
|
Pressure adjusting motor |
MAILI(TAIWAN) |
|
|
Electric elements |
Servo driver |
YASKAWA(JAPAN) |
|
PLC |
MITSUBISHI(FX3G) |
|
|
Frequency converter |
LS(KOREA) |
|
|
All other electrical parts |
LS(KOREA) |
|
|
Photoelectric switch |
PANASONIC（JAPAN) |
|
|
Pneumatic |
Main air cylinder |
AIRTAC(TAIWAN) |
|
pneumatic clutch |
CHINA |
|
|
Bearing |
main bearing |
SFS(GERMANY) |
|
|
|
