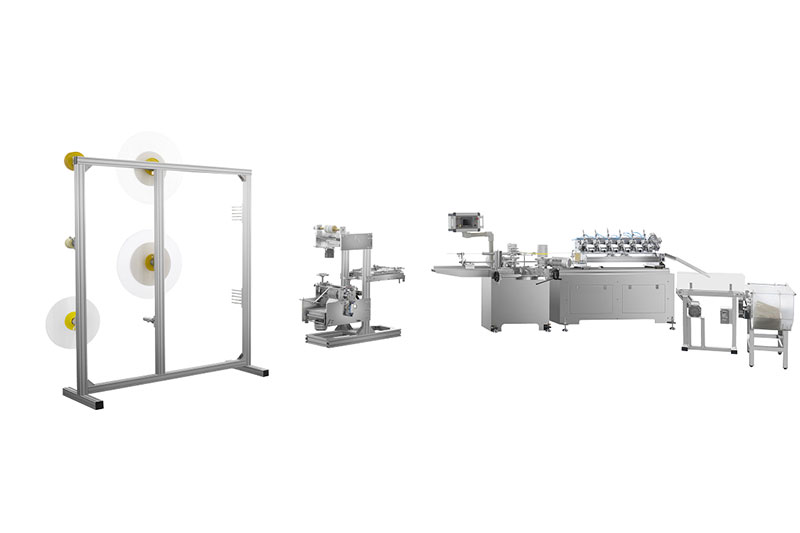

ZG 280 high-speed paper straw machine, including paper unwinding, gluing, twisting, cutting, conveying and collecting units, equipped with muti round knife to cut off paper drink straw on line. It is suitable for making 4.5-6 or 6-12mm paper drink straw.
|
Number of roller |
2-4layer |
|
Tube outer diameter |
4.5- 6 or 6-12 mm |
|
Tube wall-thickness |
0.3-1 mm |
|
Cutting Length |
120-800mm |
|
Winding speed |
0-55m/min |
|
Cutter |
6 sets |
|
Cutting Speed |
197mm length 6 diameter paper straw, 280pcs/min |
|
Glue Method |
Single and double sides |
|
Power |
7kw |
|
Power Supply |
380V /3phase,220V /3phase（with transformer）） |
|
Speed control |
Variable Frequency |
|
Working Air Pressure |
0.6Mpa |
|
Measurement |
5600*1600*1750mm |
|
Working Space |
11000mm * 6000mm*2000mm |
|
Weight |
1300kgs |
|
Operator |
1-2 person |
