Our newly designed ZSZB-D150 paper cup forming machine is a fully automatic paper cup forming machine, which can produce different sizes of paper cups with a series of continuous process, including automatic paper feeding, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by robot hand, silicone oil lubricating, bottom punching, bottom folding, bottom pre-heating, bottom knurling, cup discharging. The machine, researched and developed by our company, is improved steadily after comprehensive technical improvements.
1. Bottom sealing by hot air devices, so that the machine is efficient, the hot air device is imported from Switzerland.
2. And cup side sealing by ultrasonic.
3. More efficient and higher performance.
4. Cup top curling and bottom knurling are finished by separate turn-plates.
5. It is easy to make cups with different sizes by changing moulds.
6. With automatic cup delivery system with counter.
|
Model |
ZSZB-D150 |
|
Cup Size |
3oz ~32oz |
|
Raw material |
190~350gsm Single or Double PE coating paper |
|
Output |
120~150pcs/ minute(Cup); 90~110pcs/min(Bowl) |
|
Electrical requirement |
380V, 3-phase |
|
Working Power |
18KW |
|
Air Specification |
0.5~0.8Mpa, 0.4m^3/min |
|
Configure Power |
21KW |
|
Packing dimensions |
L2900mm×W1500mm×H1800mm |
|
Machine Weight |
5000 kgs |
|

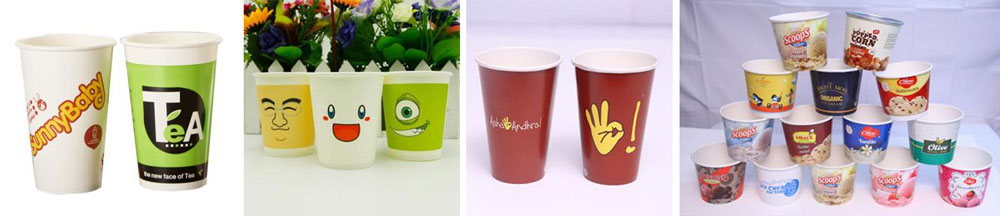

Cup Use |
round paper cups, drinking , noodle and vending cups ice-cream and food containers |
