ZBNB-D Automatic paper cup handle machine is a new product which is designed and developed by our own company. The machine is a automatic forming machine with multi-running positions .The machine runs a whole procedure of paper-feeding, handle affix, cup-fan-wall sealing, oiling, bottom punching,heating, rolling, rimming, rounding and tripping. The great advantages of the machine is making paper cup and handle into a whole.
If you need double pe coated paper cups or paper gram higher 250g/m2, we recommend you to use Ultrasonic paper cup machine, it can produce single pe coated paper cups and double pe coated paper cups.
| Type: | ZBNB-D |
| Cup size: | 3-12oz(different size mold exchanged) |
| Suitable paper material: | 150-380g/m2（single or double PE-coated paper) |
| Capacity: | 50-60pcs/min |
| Power source:: | 220V、380V 50HZ（please inform us your power in advanced） |
| Total power: | 4KW |
| Weight: | 1500KG |
| Package size: | 2500 x 1400 x 1700 mm |
| Working Air Source: | Air pressure 0.4Mpa;Air out-put:0.6m3/min |
|
|

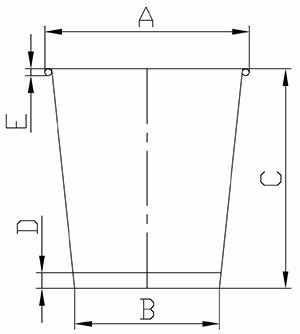

A：top diameter: Min 45mm---Max 90mm B：bottom diameter Min 35mm---Max 75mm C：total height Min 30mm---Max 115mm D：bottom knurling depth Min 4mm---Max 12mm E：rim diameter Usually Φ2.5---Φ3 |

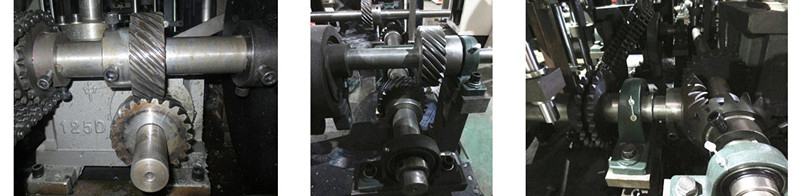

1.Use gear driving system instead of chain,more stable running and speed up.
