ZB-D12S Automatic Paper Cup Forming Machine（Vertical Shaft And Gear Driving)

ZB-D12S

ZB-D16G

ZB-D22G

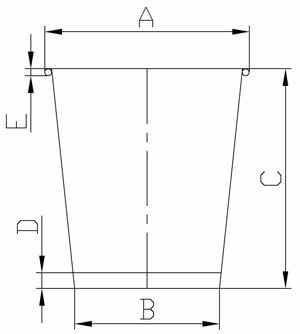

top diameter

45-95mm

50-100mm

60-100mm

bottom diameter

30-65mm

40-65mm

40-65mm

height

30-105mm

30-135mm

30-165mm

bottom knurling

4-10mm

Cup size:

2-22oz

Suitable paper material:

150-380g/m2（single or double PE-coated paper)

Capacity:

50-70pcs/min

Power source::

220V、380V 50HZ（please inform us your power in advanced）

Total power:

4KW

Weight:

2000.00KG

Package size:

2600 x 1350 x 1700 mm

Working Air Source:

Air pressure 0.4Mpa;Air out-put:0.6m3/min
