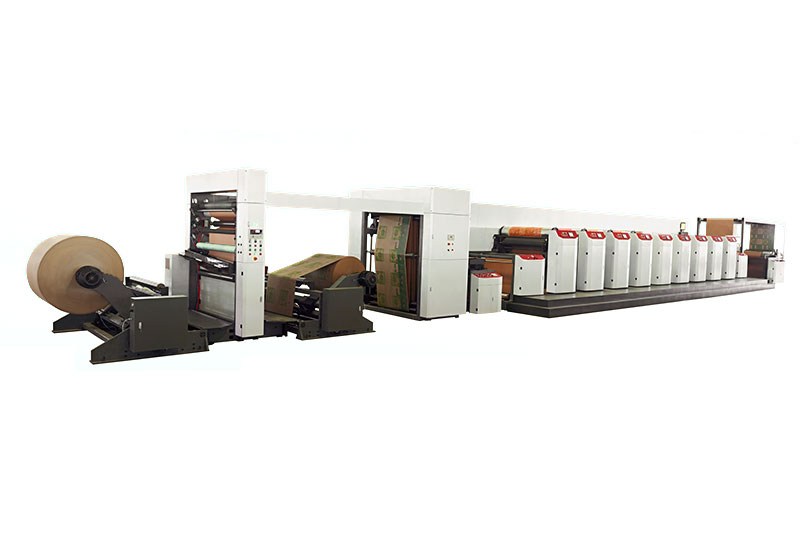

Application:This machine is a flexo printing machine which adopts flexiblephotosensitive resin plates, rubber plates as the base material, anilox rollers for transferring ink, liquid ink for printingIt is controlled centrally by PLC system and generally consists of unwinding section infeed section, printing section, drying section, outfeedsection, rewinding section and control section. This machine is an ideal machine for printing paper cup, carton, paper bag, paper package, and soon.
| TYPE | RY-H |
| Suitable paper material | 80-250gsm/m2 |
| Max.paper width | 1020mm |
| Max. printing width | 1000mm |
| Printing repeat | 286mm - 600mm |
| Register Tolerance | ±0.10mm |
| Max. printing speed | 180m/min |
| Plate thickness＋tape thickness | 1.7mm+0.38mm |
| Drying system | Electric heating (hot air) + IR |
| Power supply | 380V 3PH 50HZ |
| Working Air Source | 06MPa，2m3/min |
