1.Adopts cantilevered rotatable integrated touch screen control structure: moreflexible, safer and less space-consuming than the traditional mobile operator station.
2.The touch screen can remotely monitor the operating status of the equipment and update the program online.
3.Rectangular six-face elongated guide rail
4.Gear sub immersion oil lubrication; adopts electric thick oil forced lubrication system.
|
Model |
ZBFC-45 |
|
Nominal Force |
450KN |
|
Main Motor Power |
7.5KW |
|
Stroke Range |
150-220mm |
|
Stamping Speed Range |
35-75times/min. |
|
Table Plate Size |
L810xW440mm,2sets movable plate |
|
Maximum Mold Size |
L810xW370xH270mm |
|
Maximum Feed Width |
700mm |
|
Maximum Aluminum Foil Roll Outer Diameter |
600-1500mm |
|
Stacker Conveyor Size |
L2000xW700mm |
|
Minimum Stackable Size |
120x120mm |
|

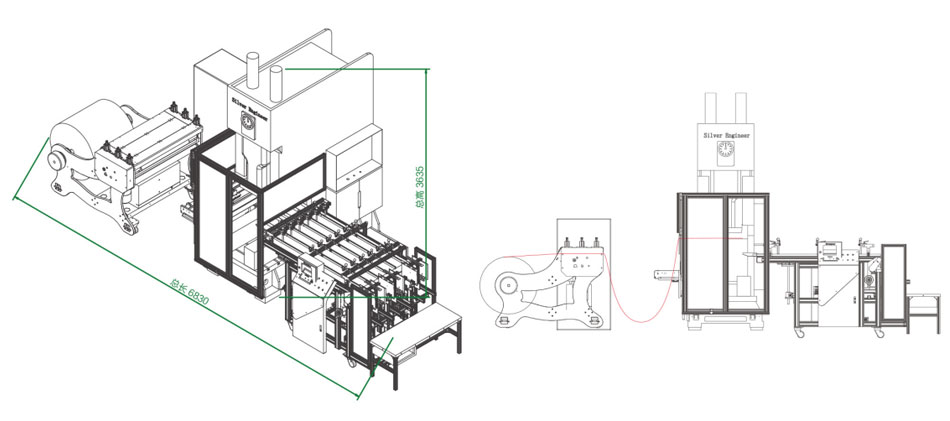

Machine Size |
7000x2400x2750mm |
|
Machine Weight |
8,000KGS |
